Frankenbindings

Postby Verskis » Fri Dec 28, 2018 12:43 pm

I wanted to open a new thread for binding modifications. What have you done for the bindings? I know there are a lot of tinkerers dealing with AT pin toes and heel cables from 75mm bindings. I have also seen Johnny's nice heel lifters for NNNBC bindings.

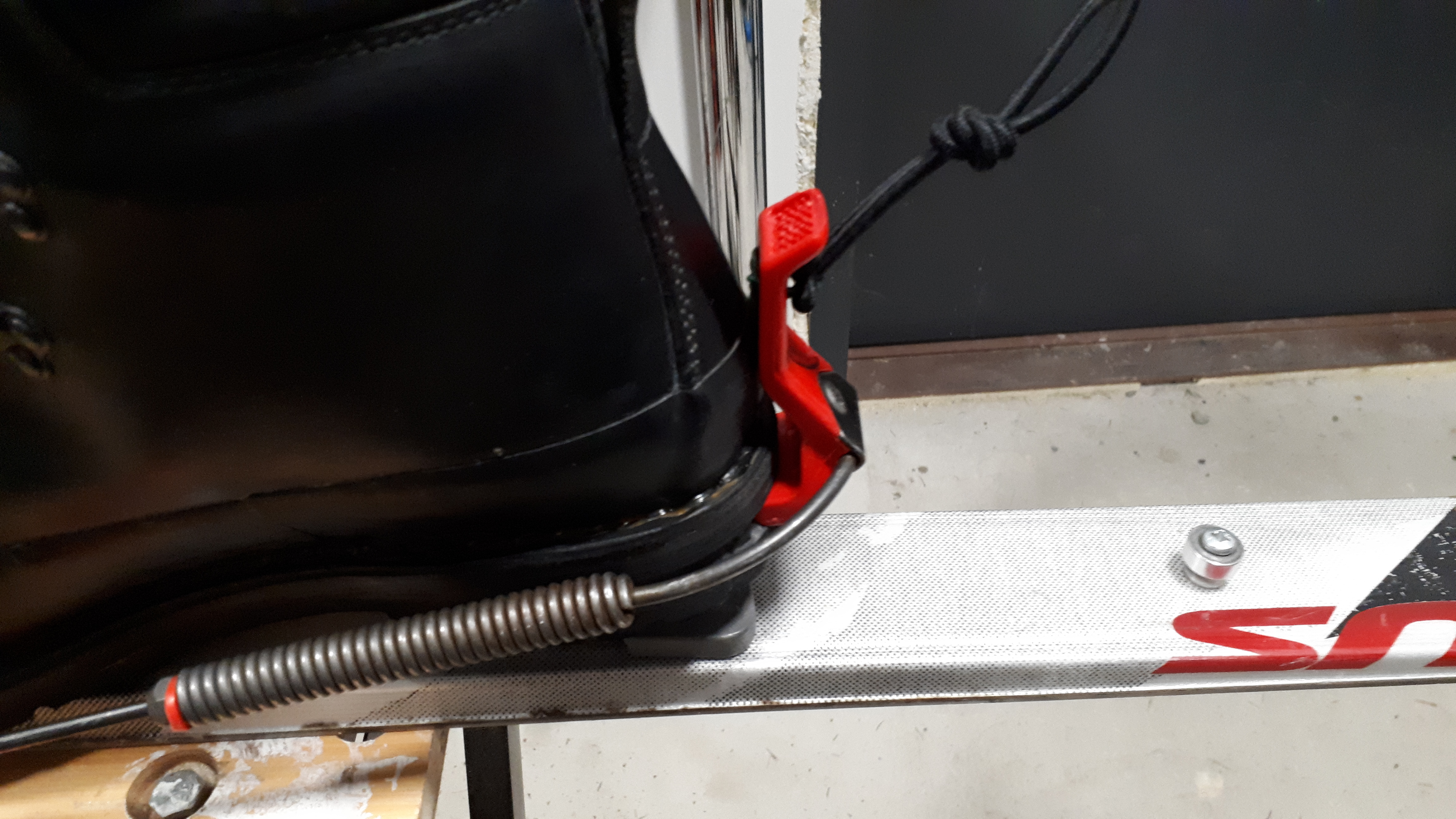

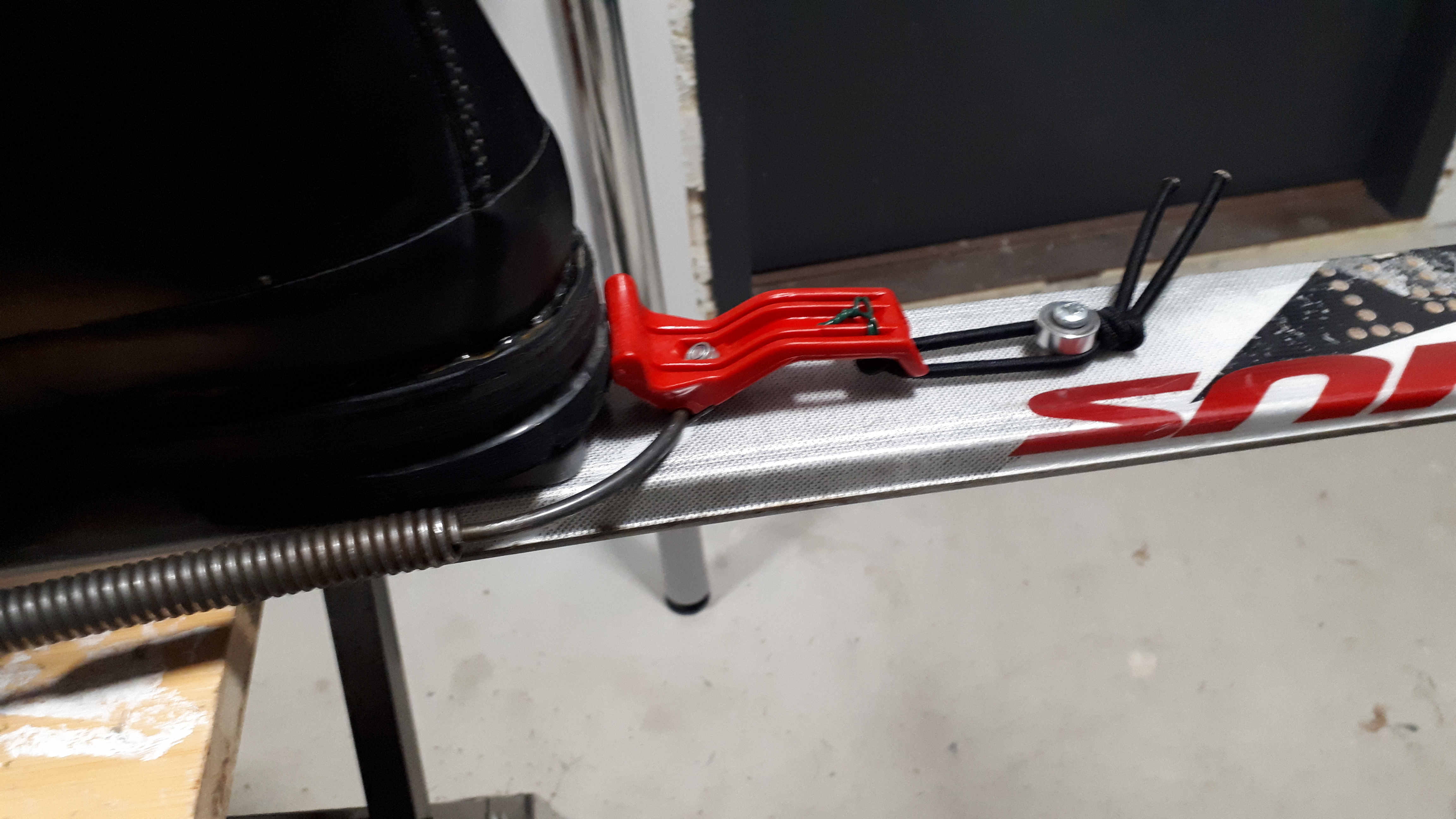

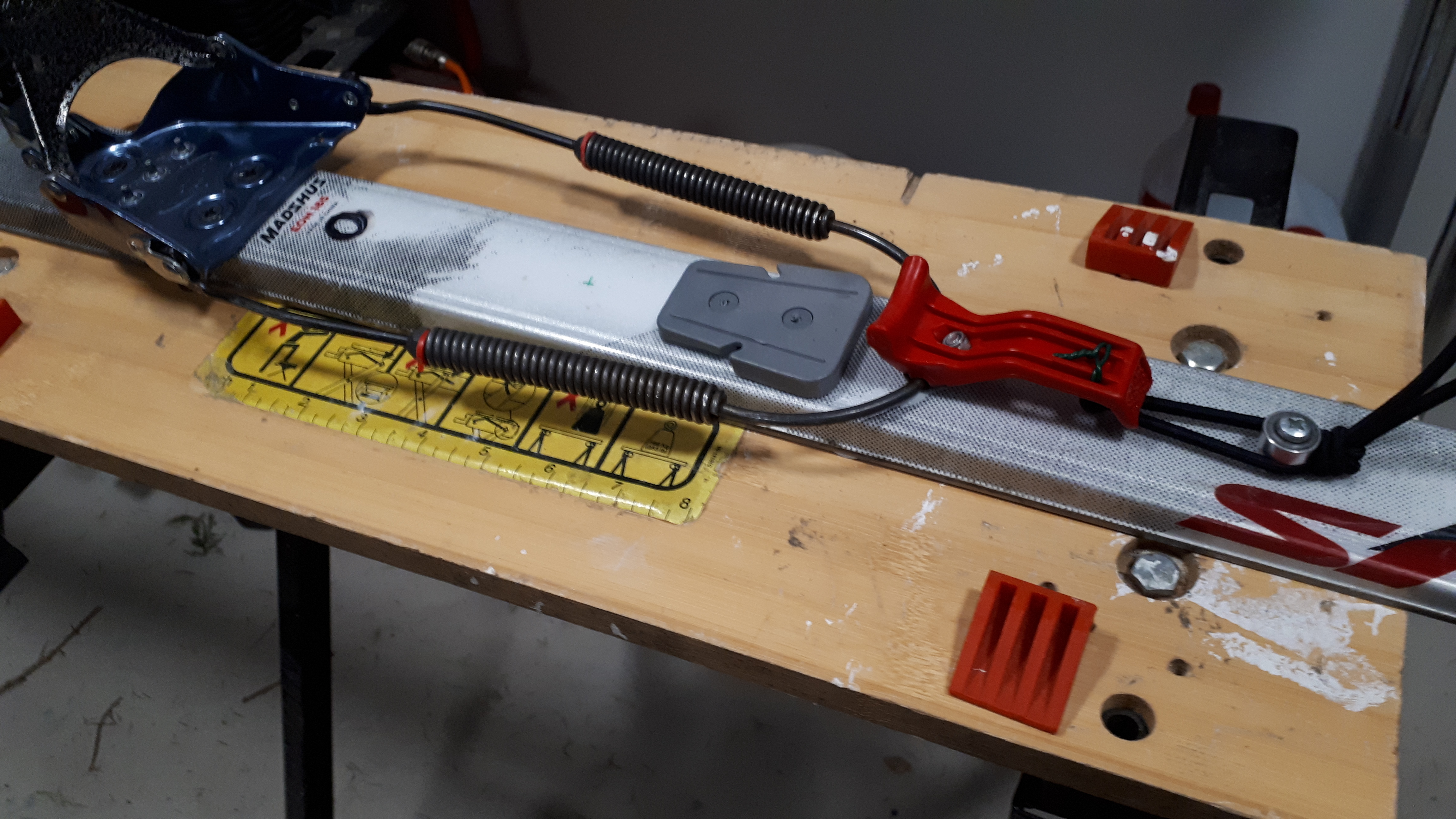

My own little modification started from the frustration of not having a place to lock the cable on Voile 3 pin cable bindings, when I wanted to use the 3 pin toe piece only. I don't want to take the cables off, it's too finicky to put them back. I just wanted to be able to quickly engage and disengage the cable on the boot. My solution was to use the Rottefella Chili cables with some elastic cord and make a locking post for the cord. Please see the pictures, they explain my idea much better than words :D

User avatar
Woodserson

Rank: XCD KNIGHT
XCD KNIGHT
Posts: 1210
Joined: Wed Feb 11, 2015 11:25 am
Location: New Hampshire
Ski style: Dancey
Favorite Skis: Voile Objective, Altai KOMs, Atomic Vantage 85, Gamme 54, Classy Woodies
Favorite boots: T4, Alaska
Occupation: Retro Rager-grouch

Re: Frankenbindings

Postby Woodserson » Fri Dec 28, 2018 12:57 pm

Dude, I'm not home right now so I can't play with them but how easy do the Rott Chili cables go on the Voile 3 pin?

I love this!

User avatar
Verskis

Rank: XCD Pinhead
XCD Pinhead
Posts: 116
Joined: Fri Oct 27, 2017 2:14 am
Location: Tampere, Finland
Ski style: XCD touring (for turns also), lift served downhill
Favorite Skis: Åsnes Rabb 68
Favorite boots: Alico Ski March
Occupation: Hydraulics engineer

Re: Frankenbindings

Postby Verskis » Fri Dec 28, 2018 1:06 pm

Woodserson wrote:Dude, I'm not home right now so I can't play with them but how easy do the Rott Chili cables go on the Voile 3 pin?

I love this!

If you have the newer style cable, where there actually aren't any cables at all (solid metal rods instead), it's plug and play. Or some bending may be needed at most, because the angle of the cable post on the bindings are not exactly the same. But it's very easy nevertheless.
The older style cable, where there are actual cables crimped to hooks, would require some grinding on the hooks to remove the little dimples on them.

User avatar
lilcliffy

Rank: XCD KNIGHT
XCD KNIGHT
Posts: 2146
Joined: Thu Jan 01, 2015 7:20 pm
Location: Stanley, New Brunswick, Canada
Ski style: Nordic backcountry touring
Favorite Skis: Asnes Ingstad BC; Asnes Gamme 54 BC; Asnes Storetind Carbon
Favorite boots: Alpina Alaska; Scarpa T4
Occupation: Forestry Professional
Instructor at Maritime College of Forest Technology
Husband, father, farmer and logger

Re: Frankenbindings

Postby lilcliffy » Fri Dec 28, 2018 1:37 pm

This is wicked Verskis- brilliant, simple and beautiful.
Very impressed.

Are you going with the same setup on your Rabb 68?
I have the 3-pin-hardwire with standard riser on my Storetind. I am not crazy about the riser when Nordic touring...I don't like it much at when XC skiing and they make the ski very aggressive and carvy on the downhill- a bit much off-piste and with a ski as narrow as 68mm underfoot I am thinking...

I have always just left the cable of the Volie 3PC just lay on the ski if I am doing some yo-yo skiing with it (I have it on my XCD Guide and XCD 10th Mtn).

I like your mod very much- I may need to copy it! Perhaps remove the riser plate on my 3pin-hardwire and use your bungie clip design...

I have not made any mods myself- though I do have a history of modding and customizing all of my work-related equipment...

The need to make my new Svartisen boots work may require lots of mod!

Thank you for posting this.
Cross-country AND down-hill skiing in the backcountry.
Unashamed to be a "cross-country type" and love skiing down-hill.

User avatar
bgregoire

Rank: XCD Guide
XCD Guide
Posts: 989
Joined: Fri Aug 22, 2014 9:31 am
Location: Rimouski, Québec
Ski style: Nordic backcountry touring with lots of turns
Favorite Skis: Fisher E99, Åsnes Ingstad & Cecilie, K2 Wayback 88
Favorite boots: Crispi Sydpolen, Alico Teletour, Arkos Greenland & Alfa Polar
Website: http://living-laponia.tumblr.com

Re: Frankenbindings

Postby bgregoire » Fri Dec 28, 2018 2:09 pm

Very cool Verskis!
I live for the Telemark arc....The feeeeeeel.....I ski miles to get to a place where there is guaranteed snow to do the deal....TM

User avatar
Verskis

Rank: XCD Pinhead
XCD Pinhead
Posts: 116
Joined: Fri Oct 27, 2017 2:14 am
Location: Tampere, Finland
Ski style: XCD touring (for turns also), lift served downhill
Favorite Skis: Åsnes Rabb 68
Favorite boots: Alico Ski March
Occupation: Hydraulics engineer

Re: Frankenbindings

Postby Verskis » Fri Dec 28, 2018 4:24 pm

Thanks for the compliments everybody! It's nice to share the ideas here, as this is probably the only place on the internet that cares about such things :D
lilcliffy wrote:Are you going with the same setup on your Rabb 68?

Probably similar, but I may want to use a 10mm Rottefella riser on that ski, as I don't have any climbing risers for any other heel pieces. Also the small rise might be good if I will use that ski as my groomer ski as well.
I have always just left the cable of the Volie 3PC just lay on the ski if I am doing some yo-yo skiing with it (I have it on my XCD Guide and XCD 10th Mtn).

Are you not stomping on the cable heelpiece all the time? I think the Voile 3PC cable does not give very much slack when opened, as I have tried the same but it did not clear my boot heel when opened.

I like your mod very much- I may need to copy it! Perhaps remove the riser plate on my 3pin-hardwire and use your bungie clip design...

Feel free to copy the design, or even develop it further! But only if you share your developments here ;)

User avatar
lilcliffy

Rank: XCD KNIGHT
XCD KNIGHT
Posts: 2146
Joined: Thu Jan 01, 2015 7:20 pm
Location: Stanley, New Brunswick, Canada
Ski style: Nordic backcountry touring
Favorite Skis: Asnes Ingstad BC; Asnes Gamme 54 BC; Asnes Storetind Carbon
Favorite boots: Alpina Alaska; Scarpa T4
Occupation: Forestry Professional
Instructor at Maritime College of Forest Technology
Husband, father, farmer and logger

Re: Frankenbindings

Postby lilcliffy » Fri Dec 28, 2018 6:07 pm

I have always released the cable- then slipped out of the bale- let the cable lie on the ski- then snapped back into the bale.
Cross-country AND down-hill skiing in the backcountry.
Unashamed to be a "cross-country type" and love skiing down-hill.

User avatar
Verskis

Rank: XCD Pinhead
XCD Pinhead
Posts: 116
Joined: Fri Oct 27, 2017 2:14 am
Location: Tampere, Finland
Ski style: XCD touring (for turns also), lift served downhill
Favorite Skis: Åsnes Rabb 68
Favorite boots: Alico Ski March
Occupation: Hydraulics engineer

Re: Frankenbindings

Postby Verskis » Sat Dec 29, 2018 4:54 pm

lilcliffy wrote:I have always released the cable- then slipped out of the bale- let the cable lie on the ski- then snapped back into the bale.

Sorry, I don't really understand. Is bale the hinged part that is pushed against the top of the duckbill? Why do you need to open the bale to release the cable?

User avatar
Verskis

Rank: XCD Pinhead
XCD Pinhead
Posts: 116
Joined: Fri Oct 27, 2017 2:14 am
Location: Tampere, Finland
Ski style: XCD touring (for turns also), lift served downhill
Favorite Skis: Åsnes Rabb 68
Favorite boots: Alico Ski March
Occupation: Hydraulics engineer

Re: Frankenbindings

Postby Verskis » Sat Dec 29, 2018 4:58 pm

Today I had my first little ski trip with the cable locking modification, and I must say it worked really well otherwise, but the cables were a bit noisy when they moved a bit during the nordic kick phase. I need to put some soft material under the heel throw, and maybe reroute the bungee cord over the heel throw so that it pushes the throw against the ski more securely.

User avatar
Inspiredcapers

Rank: XCD Enthusiast
XCD Enthusiast
Posts: 44
Joined: Wed Oct 31, 2018 4:11 pm

Re: Frankenbindings

Postby Inspiredcapers » Sun Dec 30, 2018 12:52 am

Absolutely Brilliant. I just happened to pick up a set of those Rotefella Chili bindings a couple of weeks ago. I was out on some rolling stuff today on my Alpinas and was a bit frustrated with the Voile cable, this looks like a good solution.
